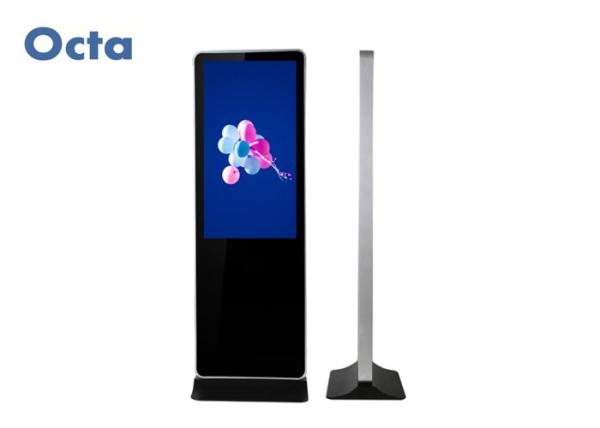

Octa touch screen lcd display 46inch floor stand lcd touch screen
advertising display for mall
Touch screen: tempered glass, Dual dots IR touch, touchscreen
resolution 4096×4096, 88% light transmittance; Operating
temperature: 0°C ~ 55°C; life:5 years; no drift, no change with
environment, full screen anti-glare, Multi language menu
Competitive Advantage
Kiosk LCD Advertising , a large stand advertising equipment,which
makes it perfect and luxury for advertising .
All stand machine can install wheel . It depends on your
requirements . If we done this,the machine can move around easily .
Quick Detail
1. Wifi digital signage.
2. Android system
3. Electronic board
4. Indoor LCD screen ,LCD monitor
5. Insert the advertising (support free insert)
6.SD card play.plug and play.
| CPU | Quad core, i3, i5, i7 |
| RAM | 2GB, 4GB |
| Hard drive | 32gb,64gb,120gb ssd |
| Interface Type | USB, VGA, HDMI, LAN |
| Touch screen | YES |
| OEM/ ODM | YES |
| Aplication | Bank, shopping mall, restaurant, hotel, hospital, meeting room,
showroom, library, cinema, community, industrial park, etc. |
| Working Temperature | 0-50°C |
| Warranty | 12month |
| CD panel | Size | 55inch (32inch ~84inch) |
| Display size(mm) | 1018.08(H)×572.67(V) |
| Point distance(mm) | 0.53025(H) * 0.53025(V) |
| Panel Resolution | 1920*1080(RGB) |
| Contrast Ratio | 4000:01 |
| Proportion | 16:09 |
| Brightness | 250cd/m2 |
| View Angle | 178/178 |
| Response Time | 6ms |
| Show Color | 16.7M |
| Power Supply | Speaker | 2*5W |
| Power Input | AC 220 V~ 50Hz |
| Power Consumption | 105W |
| Appearance | Weight | 35 Kg |
| Size(mm) | 1118 * 673 * 66 |
| Installation | Hang on the wall |
| Working environment | Operating/Storage temperature | -40℃~ 50℃ |
| Operating/Storage Humidity | 10~90% |
| wins7 hardware | CPU | 2 core 1.8G |
| Memory | DDR3 4G |
| hard dish | 500G |
| video output connector | HDMI*1,VGA*1 |
| Audio output connector | 1 |
| Network Interface | 1 |
| USB connector | 6 |
| Android hardware | CPU | 2 core1.5GHz |
| Build-in memory | NAND FLASH 4G |
| Operating Systems | Android 4.2.2 |
| USB2.0 connector | 2USB HOST,2USB socket |
| LVDS output | 1, can drive 50/60Hz LCD dirlectly |
| HDMI output | 1, support 1080P output |
| Network support | 3G,Ethernet,wifi |
| Systerm update | support USB update and network update |
| software | Marterial manage | Audio,video,picture,Flash,PPT,Word,Excel,PDF |
| Program manage | Programing,editor,manage,lead-in/lead out |
| Terminal Mnage | Terminal monitor,instand publishing,volme adjust,dowload
limited,turn on/off,remote update,touch manage etc |
| Systerm manage | Log manage,view instrustion status,user rights manage,terminal
anthentication |
| Other funtions | change password,user rights assign |
Q: Are your company is factory?
A: Yes, we are factory direct sales, can help you save a lot of
middle of the cost, give you the biggest discount.
Q: Product highlights attributes
A: Massive advertising program, time setting, remote control,
human-kiosk interaction...
Q: How the digital signage plays the ad program
A: We have two ways, one by USB (manual replacement program), the
second is through wifi, 3G, 4G, and cable remote replacement and
playback programs
Q: Can help us make great advertising programs
A: Yes, we have software to help you create great advertising
programs, simple operation, and has technical support and
instructions.
Q: Optional version
A: a. Standalone version (via manual update via USB)
b. Internet version (Andrews and windows system option, both can
use USB update program, and also wifi, 3G, 4G, and network cable
remote replacement and playback programs
c. Touch version (added touch function base on the Internet
version, human-kiosk interaction)
Q.What the difference between wall mounted style digital signage
and free standing style digital signage
A: The only difference is the installation method, the wall mounted
style digital signage is hanging on the wall, the free standing
style digital signage is standing on the ground, other functions
are the same
