Octa stretched bar lcd display Railway Commercial LCD Display Ultra
Wide Stretched Bar LCD
We are the one of the main agents of
AUO/Tianma/Mitsubishi/CMI/Innolux, mainly deal with 3.2"-32"
industrial & business lcds, we provide professional service for all
of our customers, and for prices matters, we surely have the
priority, and all the products came from original factory directly
to save more cost for customers.
Product instruction :

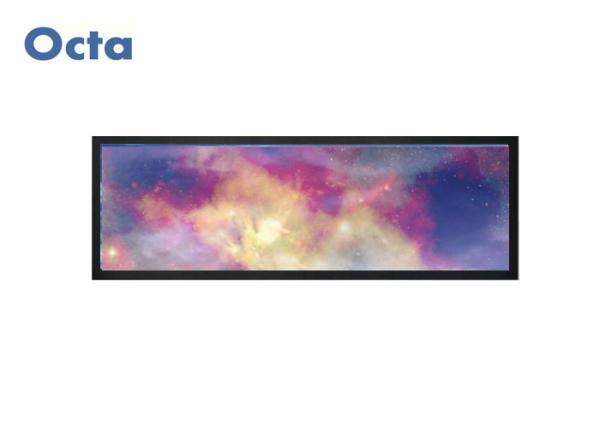

Octa stretched bar lcd display Railway Commercial LCD Display Ultra
Wide Stretched Bar LCD
This Bar Type Display, resizing lcd display, ideal display for
public access venues, Customized sizes, Ultra stretched panels for
transportation, Automation and vehicle integration gaming and
vehicle integration gaming and wayfinding style , offers an
innovative and fresh approach to grab the public's attention. Its
engaging content with wide screen,stretched,rectangular design to
make two monitors become one because you can drive and organised
the advertisements and passenger.
This product has been designed to apply the 10-bit 1 channel LVDS
interface method. It is intended to support displays where high
brightness, wide viewing angle, high color saturation, and high
color depth are very important.
Main Features :
1), Support multiple Split-screen display and Cloud managing
system.
2), Update/Check Player Content/Status Remotely at any time.
3), Support USB/wireless network update information.
4), Quad core Cortex-A7 processor/1.2 Ghz, Android 4.4.2 Version
system.
5), Based on B/S software management system structure.
Resolution
| 1280 x 248 |
| Pixel pitch | 0.294(H) x 0.294 (V) |
| Pixel Arrangement | RGB vertical stripe |
| Active Area | 376.32 (H) x 72.91(V) |
| View angle | R/L/U/D 89/89/89/89 (Deg) |
| Color Gamut | 70% |
| Surface Treatment | Anti-glare, and hard-coating 3H |
| Electrical Interface | Dual LVDS |
| Brightness | 300(cd/m2) |
| Contrast ratio | 2000:1 |
| Outline dimension | 396(H) x 100.8(V) x 17.3(D) mm |
| Backlight | LED |
| Response time | 15/5(ms) |
| Display mode | MVA, Normally black, Transmissive |
| Operate temperature | 0-50(°C) |
| Storage temperature | -20-60(°C) |
| Display Colors | 16.7M(8-bit/color) |
| Power Supply Voltage | 5.0v(Typ.) |
| Power consumption | 10.85W(Typ.) |
| Package | AUO original package; |
| 30pcs/carton; |
| 478x281x488mm. |
Q: Are your company is factory?
A: Yes, we are factory direct sales, can help you save a lot of
middle of the cost, give you the biggest discount.
Q: Product highlights attributes
A: Massive advertising program, time setting, remote control,
human-kiosk interaction...
Q: How the digital signage plays the ad program
A: We have two ways, one by USB (manual replacement program), the
second is through wifi, 3G, 4G, and cable remote replacement and
playback programs
Q: Can help us make great advertising programs
A: Yes, we have software to help you create great advertising
programs, simple operation, and has technical support and
instructions.
Q: Optional version
A: a. Standalone version (via manual update via USB)
b. Internet version (Andrews and windows system option, both can
use USB update program, and also wifi, 3G, 4G, and network cable
remote replacement and playback programs
c. Touch version (added touch function base on the Internet
version, human-kiosk interaction)
Q.What the difference between wall mounted style digital signage
and free standing style digital signage
A: The only difference is the installation method, the wall mounted
style digital signage is hanging on the wall, the free standing
style digital signage is standing on the ground, other functions
are the same
