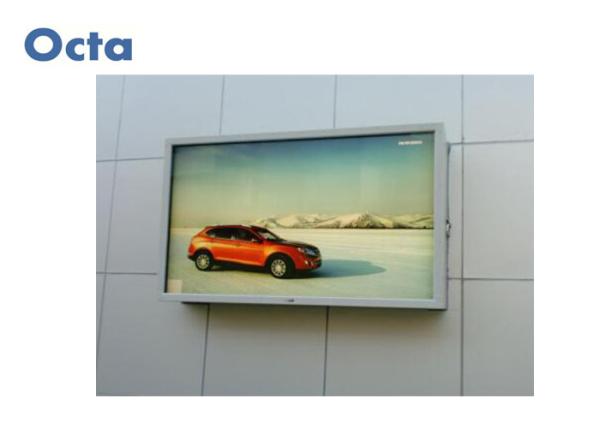

outdoor digital signage high brightness floor stand double sides
lcd advertising kiosk wholesale
Product Introduction
1. Intelligent fan cooling system, internal keep constant
temperature operating, backlight of LCD screen no attenuation for
long time working
2. IP55, dust-proof, waterproof
3. Sun readable
4. Can operate normally under high temperature
5. Adopts high transparency glass, improving the visibility of
screen, AR anti-glare makes it clearer under sunshine
Outdoor digital signage specifications:
| Iterm: | outdoor digital signage |
| Screen size: | 46" |
| Display ratio: | 16:9 |
| Resolution(Pixel): | 1920*1080 |
| View angle : | 178°/178° |
| Luminance: | 1500cd/m2,2000cd/m2 , 2500cd/m2 , 2500cd/m2 , 3000cd/m2 3500cd/m2 ,4000cd/m2 ,5000cd/m2 |
| Contrast ratio: | 4000:1 |
| Response time : | 6ms |
| Display area: | 1040*585 mm |
| Touch screen optional | Capacitive touch screen / Infrared touch screen / Nano touch screen |
| Operating temperature: | -40°C--+60°C |
| Protection Rating: | IP65 |
| Storage Temperature: | 0-50 degrees |
| Humidity :5%-100% |
| Air conditioner | Voltage Rated:AC110V/60Hz OR other Current Rated:AC 6.5A Power Rated:AC 500W Cooling Capacity:1500W(L35 L35) Heating Capacity:500W(optional) Ambient Temperature:-20℃~55℃ IP Grade:IP65 |
| Radiator | Working Pressure:2bar-40bar Specification: 2Kw-400Kw |
| AC Input: | 110-240V, 50/60Hz |
| Standalone version | RAM:8G SD play |
| Android version | Quad core cortex A8, All winner A31 ,1.2GHz 1G DDR3, android 4.4.2
or above. |
| Windows pc | Quad-core pc / i3 / i5 / i7 intel core |
| Color option: | Silver, white, black or optional |
| Enclosure material | Zinc coated steel+front tempered glass |
| Installation: | Wall mounting/roof hanging/floor standing |
| I/O interface: | 1*USB,1* SD/MMC/MS card slot ,
HDMI/DVI/VGA optional |
Applications
| Business Organizations | supermarket , large-scale shopping malls , exclusive agency , chain
shops , large-scale sales , star-rated hotels , restaurants ,
travel agencies , pharmacy. |
| Financial Organizations | Banks , negotiable securities , funds , insurance companies ,
pawnshops; Non-profit Organizations Telecommunications , post offices ,
hospital , schools; |
| Public Places | subway , airports , stations , gas stations , toll stations ,
bookstores , parks , exhibition halls , stadiums , museums ,
convention centers , ticket agencies , HR market , lottery centers;
Real Estate Property Apartments , villas , offices , commercial
buildings , model rooms , property brokers; |
| Entertainments | Movie theaters , fitness halls , country clubs , clubs , massage
rooms , bars , cafes , Internet bars , beauty shops , golf course |
high brightness digital signage Key Features
1 . high brightness LCD Module , 1500nits brightness , 1920x1080
resolution , 4000:1 contrast with LED backlight , Sunlight viewable
2 . Patented LED backlight modular components + constant current
source drive components
3 . Patented cooling structure combination of high-quality fan
assembly
4 . Quad cores CPU 8Gb memory , Latest Android OS network version
support LAN control , WIFI control , USB , CF , SD slots , support
HDMI VGA input,3G(optional)
5 . Automatic ambient light adjustment control (extended life and
energy efficiency)
Q: Are your company is factory?
A: Yes, we are factory direct sales, can help you save a lot of
middle of the cost, give you the biggest discount.
Q: Product highlights attributes
A: Massive advertising program, time setting, remote control,
human-kiosk interaction...
Q: How the digital signage plays the ad program
A: We have two ways, one by USB (manual replacement program), the
second is through wifi, 3G, 4G, and cable remote replacement and
playback programs
Q: Can help us make great advertising programs
A: Yes, we have software to help you create great advertising
programs, simple operation, and has technical support and
instructions.
Q: Optional version
A: a. Standalone version (via manual update via USB)
b. Internet version (Andrews and windows system option, both can
use USB update program, and also wifi, 3G, 4G, and network cable
remote replacement and playback programs
c. Touch version (added touch function base on the Internet
version, human-kiosk interaction)
Q.What the difference between wall mounted style digital signage
and free standing style digital signage
A: The only difference is the installation method, the wall mounted
style digital signage is hanging on the wall, the free standing
style digital signage is standing on the ground, other functions
are the same
